Name: Best Price CE Laboratory Pharmacy Herbal Powder Hard Gel Semi Automatic Capsule Filling Machine
Brand: WENZHOU HUALE MACHINERY CO.,LTD
SKU: DTJ-T
Price: 4700 USD
Availability: InStock

Home Products Semi Auto Capsule Filling Machine

Best Price CE Laboratory Pharmacy Herbal Powder Hard Gel Semi Automatic Capsule Filling Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE
Model Number:	DTJ-T

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$4700 /Set
Packaging Details:	Wooden Box
Delivery Time:	30 working days after received your payment
Supply Ability:	15 Sets per month

Contact Now

Detailed Product Description

Name:	Semi Automatic Capsule Filling Machine	Dimension:	13507001600mm
Capsule Size:	000# 00#,0#,1#,2#,3#,4#	Vacuum Pump:	40m3/h
Warranty:	1 Year	Driven Type:	Electric
Control:	PLC Control With Touch Screen	Weight:	350kg

Best Price CE Laboratory Pharmacy Herbal Powder Hard Gel Semi Automatic Capsule Filling Machine

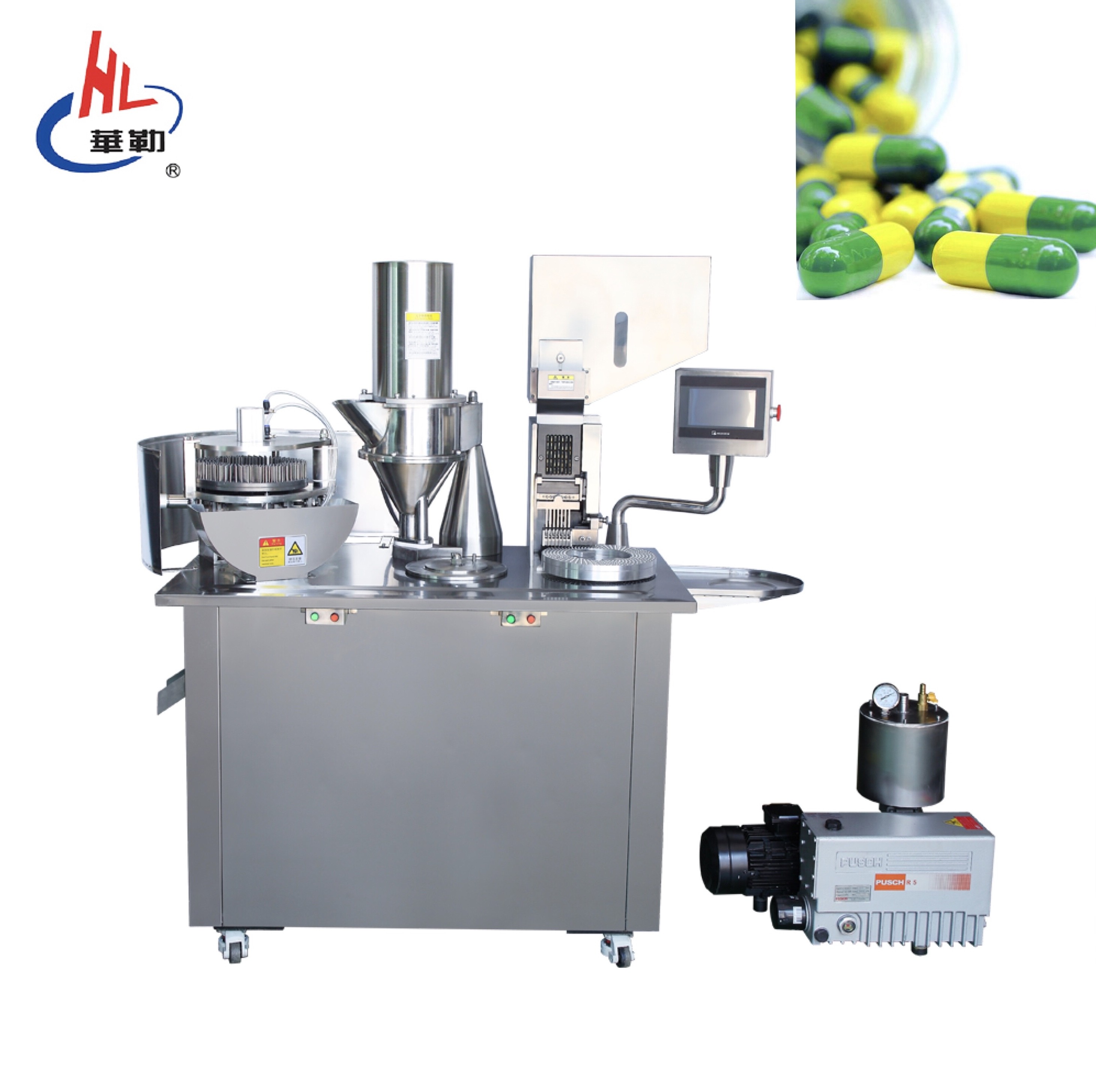

Best Price CE Laboratory Pharmacy Herbal Powder Hard Gel Semi Automatic Capsule Filling Machine 0

Main parameters

Capacity	Max. 18,000 pcs/h
Power supply	380V/220V 50HZ 2.2KW
Vacuum pump	XD-040(40m3/h)
Capacity of air compressor	0.1 m3/min
Noise	<60dB(A)
Overall dimensions:(mm)	1350×700×1600
Packing dimension:(mm)	1800×800×1800
Net weight:(Kg)	350
Gross weight:(Kg)	480

Advatages

It is much easier and more convenient to operate the new semi-auto capsule filling machine with a PLC, and it looks more high-grade.
It uses SS304 instead of copper to make the capsule dispensing part. This change enhances the precision of capsule loading and reduces friction. Not only does it improve the producing efficiency, but also it extends the life of the machine.
The capsule locking parts on the new machine is horizontal, and it adopts automatic pneumatic principle. The design can prevent the powders crashing effectively to improve the capsule quality. It also reduces manpower and makes the operation more convenient.

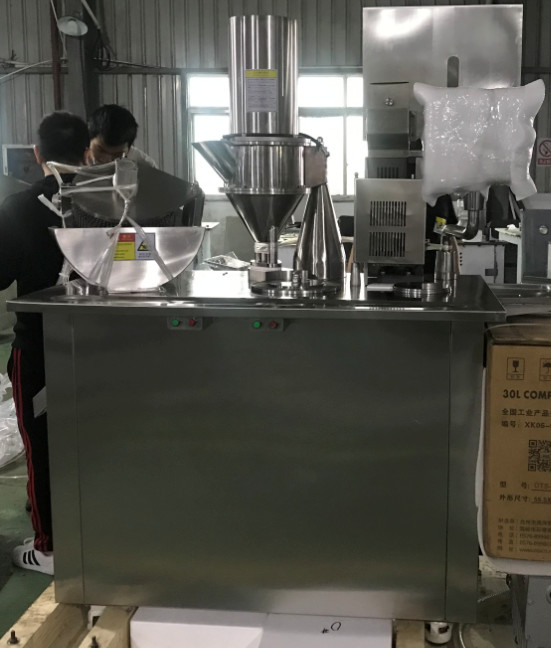

Machine introduction

Best Price CE Laboratory Pharmacy Herbal Powder Hard Gel Semi Automatic Capsule Filling Machine 1

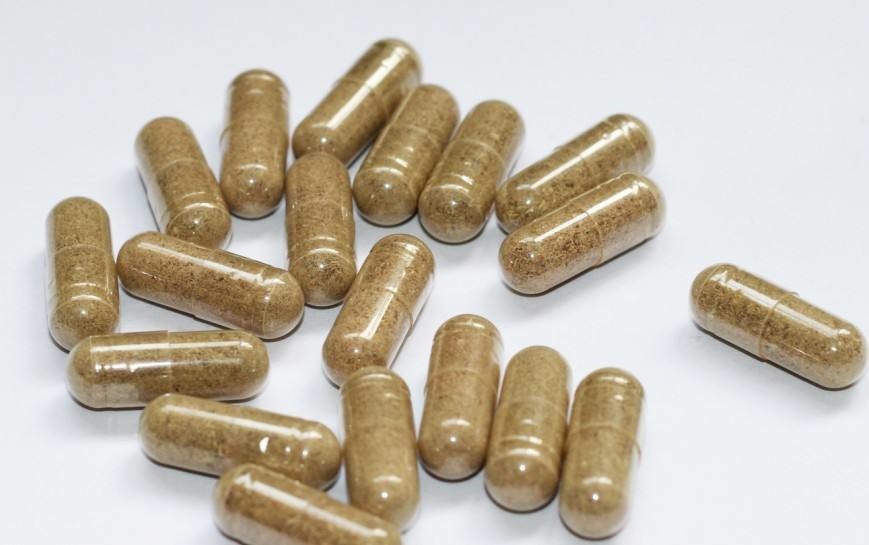

Finished capsules

Best Price CE Laboratory Pharmacy Herbal Powder Hard Gel Semi Automatic Capsule Filling Machine 3
