Name: Manual / Semi Auto Capsule Filling Machine for Pharmaceutical Factory
Brand: WENZHOU HUALE MACHINERY CO.,LTD
SKU: DTJ-V
Price: 4700 USD
Availability: InStock

Home Products Semi Auto Capsule Filling Machine

Manual / Semi Auto Capsule Filling Machine for Pharmaceutical Factory

Product Details:

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE ISO9001
Model Number:	DTJ-V

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$4700 /Set
Packaging Details:	Wooden Box
Delivery Time:	30 working days after received your payment
Supply Ability:	30 Set per month

Contact Now

Detailed Product Description

Product Name:	Semi-automatic Capsule Filling Machine	Control:	PLC Control
Vacuum Pump:	Oil Vacuum Pump (XD-040 40m3/h)	Capacity Of Air Compressor:	0.1m3/min
Power Supply:	380V/220V 50HZ 2.1KW	Used:	Powder Or Granules
Highlight:	Small Capsule Filling Machine , Semi Automatic Capsule Filler

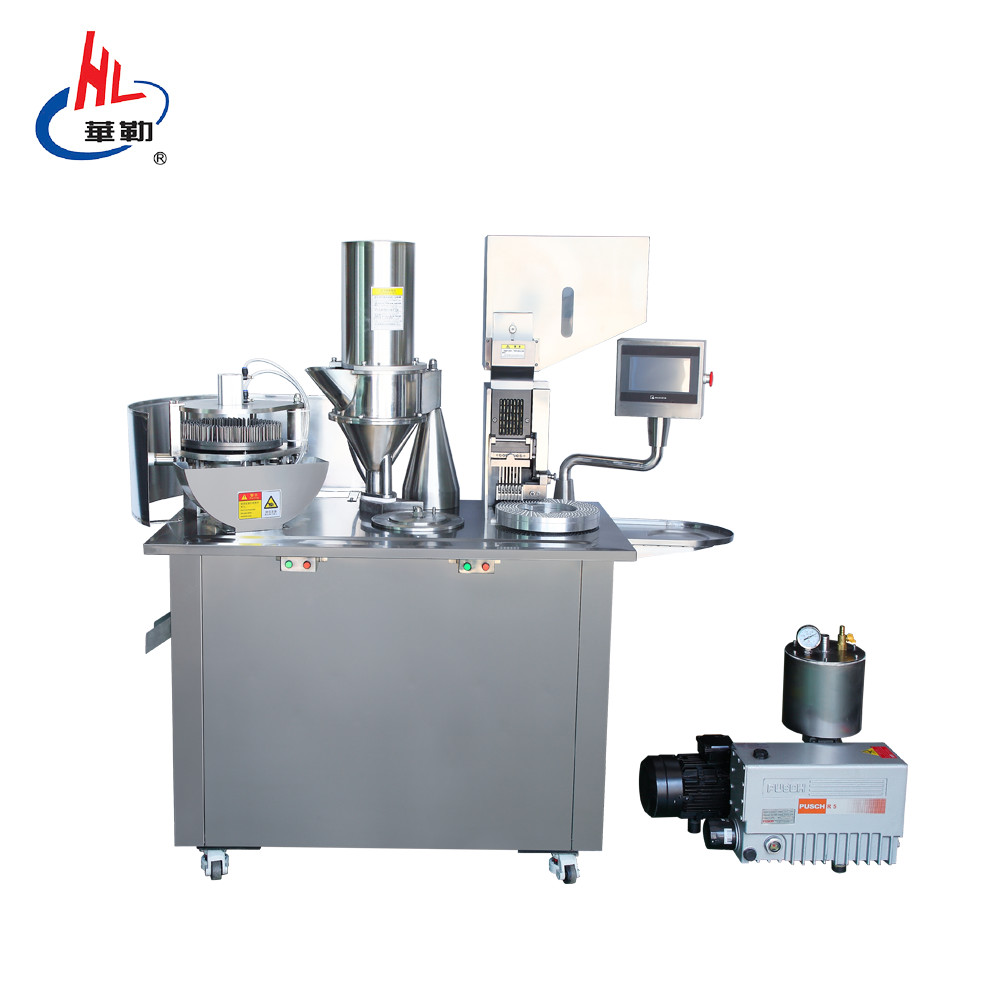

Manual / Semi Auto Capsule Filling Machine for Pharmaceutical Factory

The product is special capsule filling machine which is suitable for medium & small pharmaceutical factory, hospital preparation lab, etc. The overall machine is made of stainless steel, and it is suitable for the capsule which is filled with powder or granules. The machine is adopted programmable control system, touch panel operation, step-less transduction speed-shift, and electronic automatic counter. It automatically completes the action of position, separation, filling, locking, etc. The dosage is accurate, and the complete operation is convenient.
Output	8000-12000
Capsule size	No. 00#-5# & Safety Capsule A-E
Power supply	380V 50HZ 2.1KW
Vacuum pump	XD-040(40m3/h)
Capacity of air compressor	0.1 m3/min
Noise	<60dB(A)
Overall dimensions:(mm)	1200×700×1600
Net weight:(Kg)	330kg

Capsule Type

Hole

1-5#

420

360

00#

300

000#

250

1: Pedal	7: Filling mechanism
2: Output	8: Input of Capsule (The hopper)
3: Filling Control Button	9: Capsule dispensing mechanism
4: Pins Plate	10: Security Baffle
5: Locking mechanism	11: The mold
6: Input of Powder	12: Control panel
