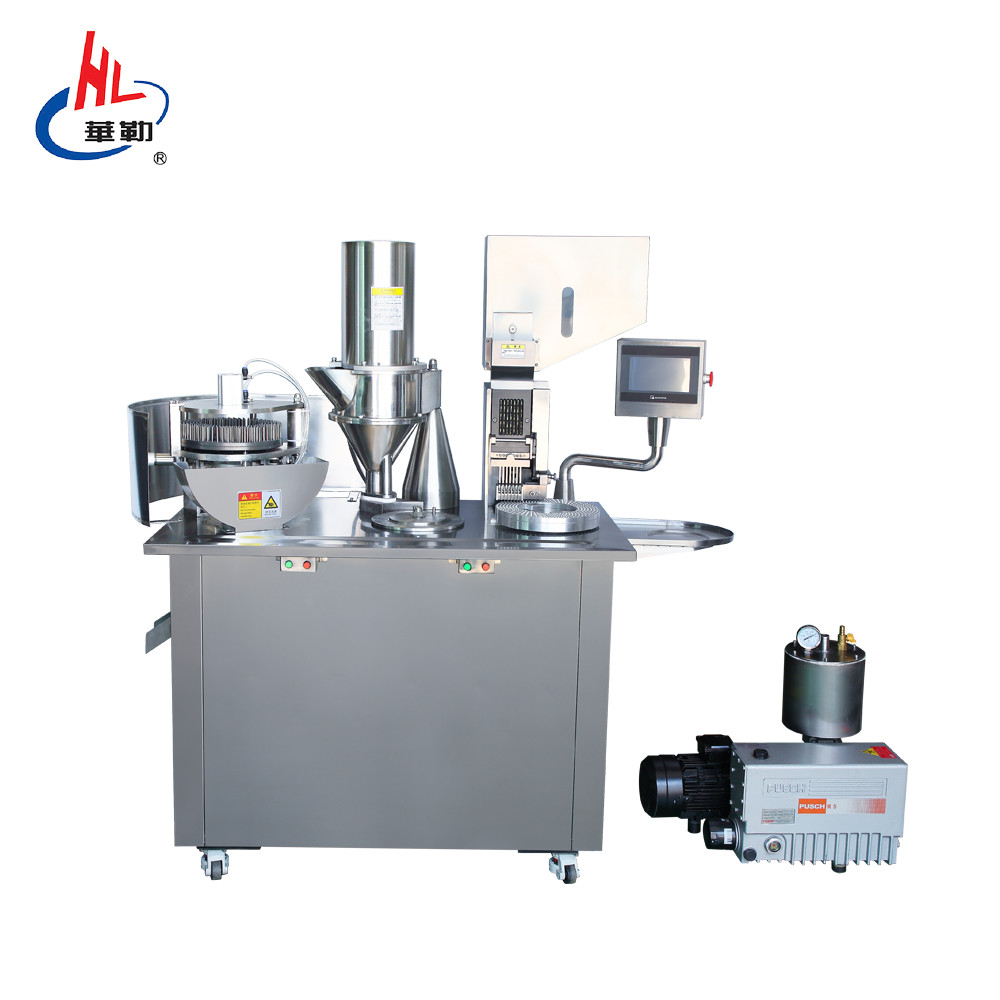

Semi Automatic Capsule Filling Machine For Animal Drug , 8000-12500 Capsules / H

Semi Automatic Capsule Filling Machine For Animal Drug , 8000-12500 Capsules / H

  • Semi Automatic Capsule Filling Machine For Animal Drug , 8000-12500 Capsules / H
  • Semi Automatic Capsule Filling Machine For Animal Drug , 8000-12500 Capsules / H
  • Semi Automatic Capsule Filling Machine For Animal Drug , 8000-12500 Capsules / H
  • Semi Automatic Capsule Filling Machine For Animal Drug , 8000-12500 Capsules / H
  • Semi Automatic Capsule Filling Machine For Animal Drug , 8000-12500 Capsules / H
Semi Automatic Capsule Filling Machine For Animal Drug , 8000-12500 Capsules / H
Product Details:
Place of Origin: CHINA
Brand Name: HUALE MACHINERY
Certification: CE ISO9001
Model Number: DTJ-V
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $4500-7000 /Set
Packaging Details: Wooden Box
Delivery Time: 30 working days after received your payment
Supply Ability: 30 Set per month
Contact Now
Detailed Product Description
Product Name: Manual Automatic Capsule Filling Machine Capacity: 8000-12500 Capsules/h
Material: Stainless Steel 304/316 Control System: PLC Control System
Vacuum Pump: Oil Vacuum Pump (XD-040 40m3/h) Capacity Of Air Compressor: 0.1m3/min
Power Supply: 380V/220V 50HZ 2.1KW Used For: Powder Or Granules
Air Compressor: Not Provide
Highlight:

Small Capsule Filling Machine

,

Semi Automatic Capsule Filler



Semi Automatic Capsule Filling Machine For Animal Drug , 8000-12500 Capsules / H





Instroduction



This machine is suitable for medium & small pharmaceutical factory, hospital preparation lab, health supplement industry etc. It si suitable for capsule which is filled with powder or granules.





Technical parameters



Machine Model

DTJ-V

 Output

12500-22500 Capsules/H

Capsule Size

Suitable for filling capsule size 00#-5#
Safety capsule size:A-E
(need to exchange the spare parts/molds accordingly)

Dosage Type

Powder/Pellet/granules

Power Supply

380V 50HZ 2.1KW

Overall dimension.

1200mm x 700mm x 1600mm

Net weight.

330kg





Performance and characteristic



It adopts programmable control system, touch panel operation, step-less transducer speed-shift and electronic automatic counter.



It automatically completes the action of position, separation, filling, locking etc.



The dosage is accurate and the complete operation is convenient.



The overall machine is made of high quality stainless steel.

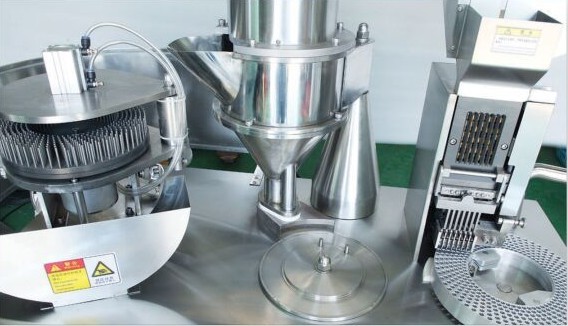

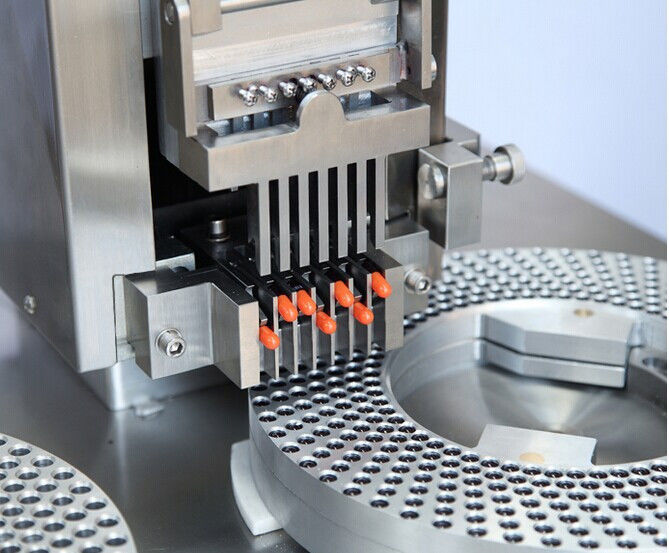

A Set Of Mold



Semi Automatic Capsule Filling Machine For Animal Drug , 8000-12500 Capsules / H 0

NO.

Name

1

Capsule-dispensing pipe

2

Capsule-pressing head

3

Capsule-carrying switch

4

Capsule-carrying comb

5

Capsule-carrying comb base

6

Capsule-driving plate

7

Pin disk

8

Capsule ring





PACKAGE

  1. The machine will not be shaking in transport with wooden fixed.
  2. The machine will not be affected with damp in transport with packed with PE plastic bags.
  3. Easy shaking station will fixed with hard rope.
  4. Long machine will packed separately.
  5. If there are strict requirements, chassis can use iron girders.

Semi Automatic Capsule Filling Machine For Animal Drug , 8000-12500 Capsules / H 1
