Name: PLC Control System Semi Auto Capsule Filling Machine For Small Business
Brand: WENZHOU HUALE MACHINERY CO.,LTD
SKU: DTJ-V
Price: 6,150.00 USD
Availability: InStock

Home Products Semi Auto Capsule Filling Machine

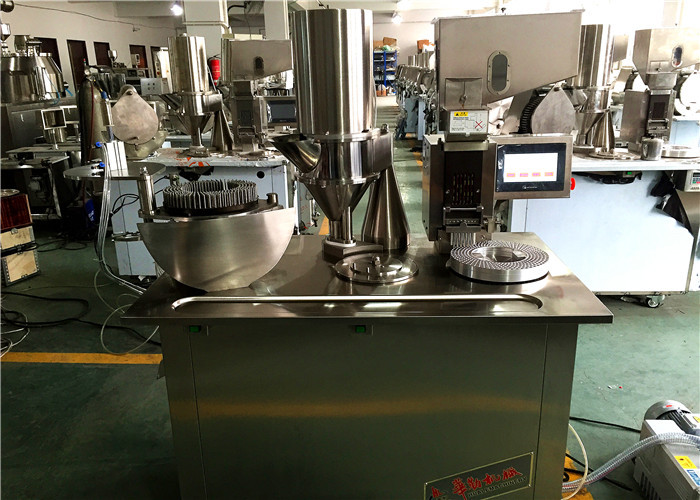

PLC Control System Semi Auto Capsule Filling Machine For Small Business

Product Details:

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE ISO9001
Model Number:	DTJ-V

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$5800-6500 /Set
Packaging Details:	packed in plastic bag and fixed in export wooden box
Delivery Time:	30 working days after received your payment
Supply Ability:	15 Setsper month

Contact Now

Detailed Product Description

Machine Name:	Semi-automatic Capsule Filling Machine	Dimension:	13507001600mm
Capsule Size:	00#,0#,1#,2#,3#,4# Are Available	Vacuum Pump:	Oil Vacuum Pump (XD-040 40m3/h)
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Driven Type:	Electric
Control System:	PLC Programming Control With Touch Screen	Weight:	330kg
Highlight:	Small Capsule Filling Machine , Semi Automatic Capsule Filler

PLC Control System Semi Auto Capsule Filling Machine For Small Business

Application

It is a special capsule filling machine which is suitable for capsule filling with powder or granules.

It can be used for Laboratory in pharmaceutical factory, small scale chemical works,

Chemical laboratory, small scale chemical factory,Food factory laboratory etc.

Main parameters

Price	6500USD/SET
Capsule size	No. 00#-5# & Security Capsule A-E
Capacity	Max. 18,000 pcs/h
Power supply	380V/220V 50HZ 2.2KW
Vacuum pump	XD-040(40m3/h)
Capacity of air compressor	0.1 m3/min
Noise	<60dB(A)
Overall dimensions:(mm)	1350×700×1600
Packing dimension:(mm)	1800×800×1800
Net weight:(Kg)	330
Gross weight:(Kg)	400

Advatages

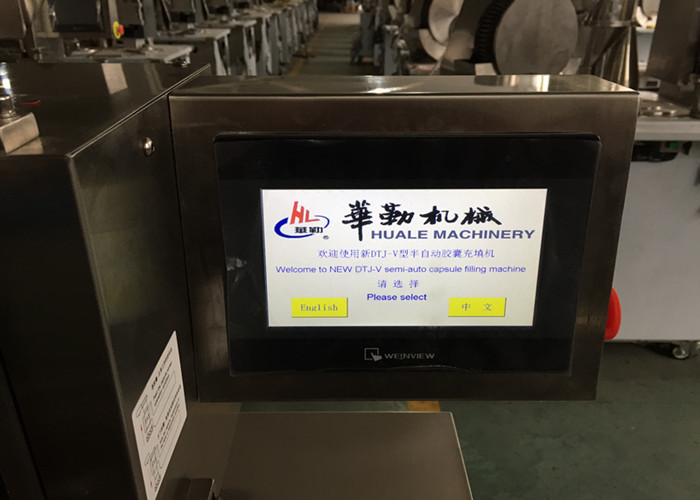

It is much easier and more convenient to operate the new semi-auto capsule filling machine with a PLC, and it looks more high-grade.

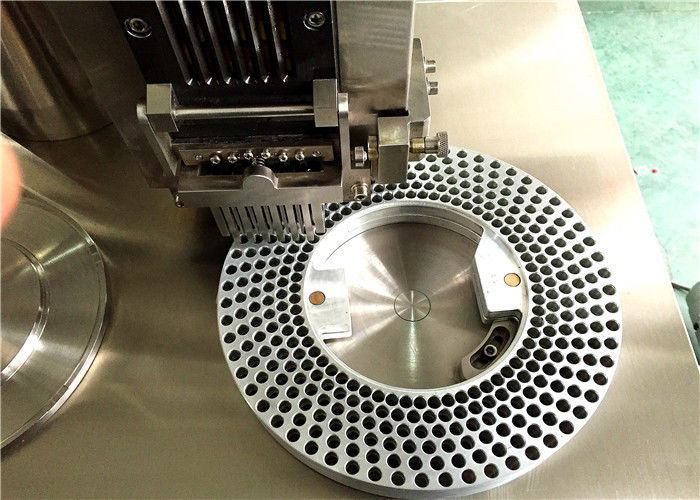

It uses SS304 instead of copper to make the capsule dispensing part. This change enhances the precision of capsule loading and reduces friction. Not only does it improve the producing efficiency, but also it extends the life of the machine.
The capsule locking parts on the new machine is horizontal, and it adopts automatic pneumatic principle. The design can prevent the powders crashing effectively to improve the capsule quality. It also reduces manpower and makes the operation more convenient.

Finished capsules

PLC Control System Semi Auto Capsule Filling Machine For Small Business 0

PLC Control System Semi Auto Capsule Filling Machine For Small Business 1

PLC Control System Semi Auto Capsule Filling Machine For Small Business 2

PLC Control System Semi Auto Capsule Filling Machine For Small Business 3
