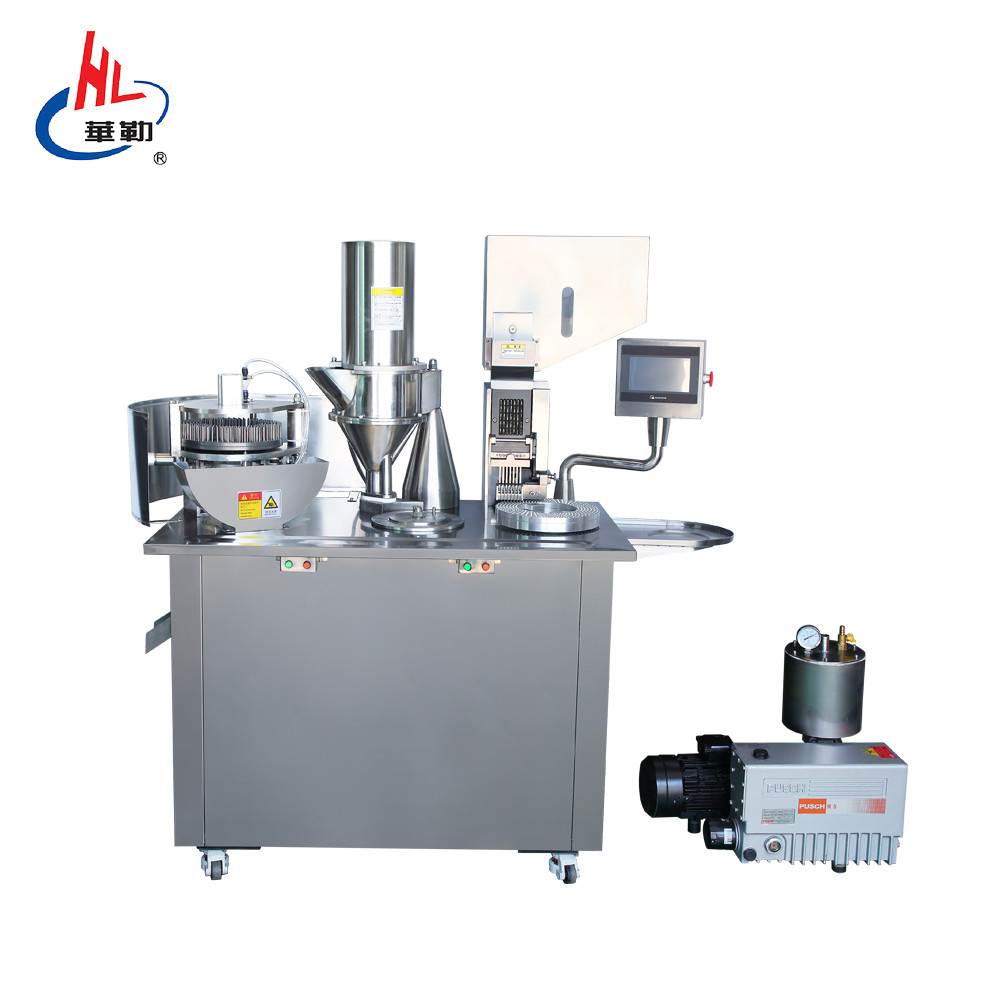

New Semi-automatic Capsule Filling equipment with PLC control

Basic Information

Place of Origin:	CHINA
Brand Name:	HUALE MACHINERY
Certification:	CE ISO9001
Model Number:	DTJ-V

Minimum Order Quantity:	1 Set
Price:	$6000 /Set
Packaging Details:	packed in plastic bag and fixed in export wooden box
Delivery Time:	30 working days after received your payment
Supply Ability:	15 Setsper month

Get Best Price Contact Now

Features:	Can Filling Powder, Pellet, Micro-pills,granuals	Machine Name:	Semi-automatic Capsule Filling Machine
Capsule Size:	000#,00#,0#,1#,2#,3#,4#,5# Are Available	Vacuum Pump:	Attached
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Driven Type:	Electric
Control System:	PLC Programming Control With Touch Screen	Certification:	CE
Highlight:	Small Capsule Filling Machine , Semi Automatic Capsule Filler

New Semi-automatic Capsule Filling Equipment with PLC control

New Semi-automatic Capsule Filling equipment with PLC control 0

Application

It is a special capsule filling machine which is suitable for capsule filling with powder or granules.

It is suitable for medium & small pharmaceutical factory,,hospital preparation lab.etc.

General Description

The DTJ-V Capsule-Filling Machine is a new type of medicine filling machine with novel structure and attractive appearance. Under both electrical and pneumatic control and equipped with and automatic electronic counter and computer-controlled speed-adjusting device, the machine can accomplish the positioning, separation and locking etc. of capsules. In place of manual capsule-filling, it can reduce labor intensity and raise productivity. Its filling amounts are accurate and up to sanitary standards for pharmaceutics.

Main parameters

Capsule size	No. 000#-5#
Capacity(capsules/h)	10000-22500((Depending on the operation of skilled workers)
Power supply	380V 3Pharse 4.0kw
Vacuum pump	40m³/h
Capacity of air compressor(is not included, prepared by customers)	0.03m³/min 0.7Mpa
Overall dimensions:(mm)	1140×700×1630
Packing dimension:(mm)	1650×800×1750
Net weight:(Kg)	430
Gross weight:(Kg)	500
